Switchcraft 1/4

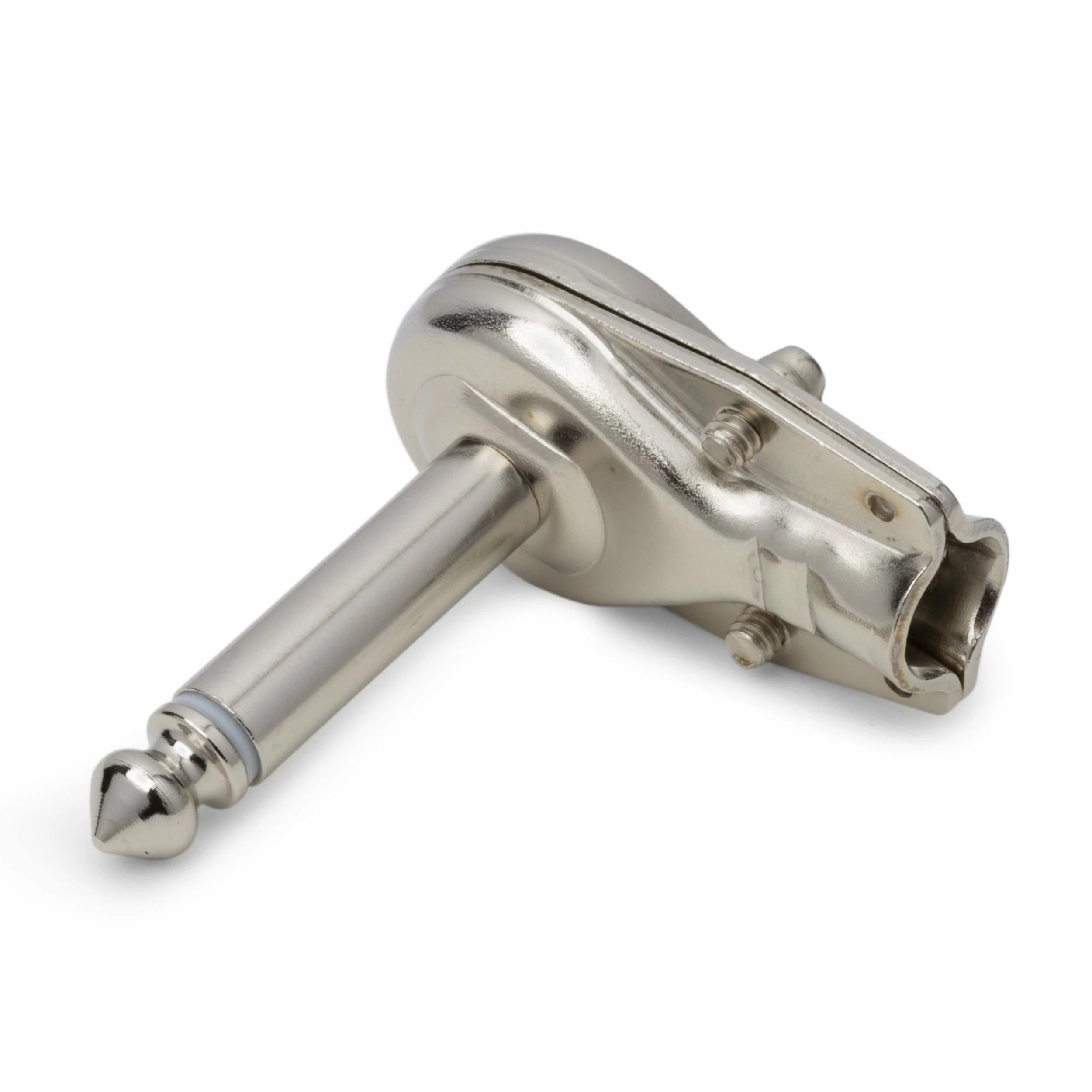

Switchcraft 1/4″ Right Angle Pancake Plug

A space-saving design for amps and more. With rugged durability, this jack fits into the tightest spaces for secure connections.

When you need a solid, road-worthy connection in a tight space, “pancake” plugs are the solution. They stay flush to the jack, eliminating potential damage from knocks and bumps. The 90 degree plug is also perfect for connecting speakers in combos and cabs. This plug is recommended for applications where electromagnetic interference and physical abuse are common.

Features:

• Switchcraft Type 229 plug
• Heavy-duty machined copper alloy handle, tip, and body for unsurpassed durability
• Bright nickel plating on exterior surfaces will not chip or corrode
• Solder terminals are tin electroplated for easy soldering
• One-piece tip rod staked into tip terminal ensures electrical continuity
• Heavy-duty cable clamp provides secure strain relief
• Proven industry standard phone plug for audio applications

Specifications:

• 1/4″ mono 2-conductor right angle plug
• Sleeve, tip and body: nickel-plated copper alloy
• Solder lug terminals: tinned copper alloy
• Handles: shielded, machined nickel-plated copper alloy
• Tubular insulator inside handle
• Dielectric withstanding voltage: 500 Vac.
• Insulation resistance: 50,000 megaohms minimum
