StewMac Pickups For P-Bass – StewMac

StewMac Pickups for P-Bass

A piece of history for your instrument! This is the renowned design that revolutionized bass playing.

Made to vintage specifications with Alnico 5 polepieces for that smooth classic sound, the split coils are wired in series for hum cancellation and clean tone. This is our workhorse bass pickup, always a great choice to upgrade any instrument.

Specifcations

• Medium output split single-coil pickup
• Polepiece spread: 2.25″ (57mm) across both covers
• Poly-coated 42 AWG coil wire
• Potted to suppress noise
• Hum-cancelling design
• Alnico 5 magnets
• Push-back cloth-insulated lead wires

Output

• 10.5K ohm range

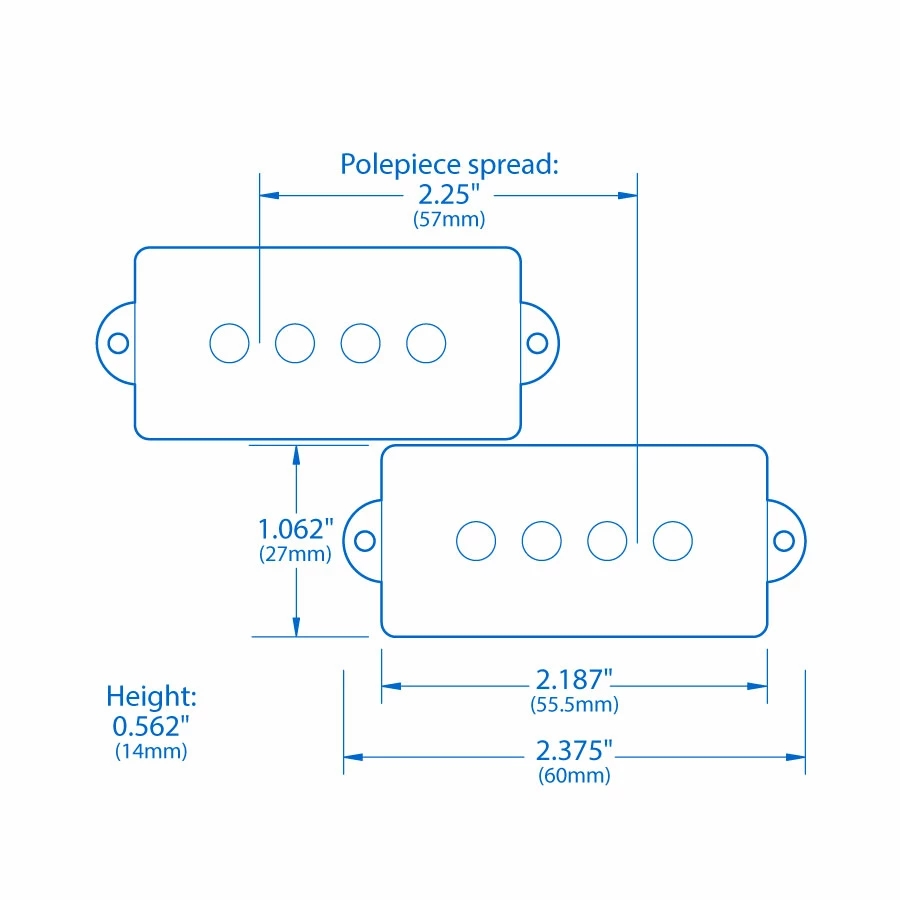

Dimensions (each pickup)

• Length not including mounting tabs: 2.187″ (55.5mm)
• Mounting screw spacing: 2.37″ (60mm)
• Width: 1.062″ (27mm)
• Height: 0.562″ (14.29mm)
• Flatwork: Bottom thickness 0.094″ (2.39mm), top 0.062″ (1.57mm)

Black covers, compressible foam pads for height adjustment, and mounting screws included.

Precision® Bass and P-Bass® are registered trademarks of Fender Musical Instruments Corporation.
