StewMac Hotwound Dual-rail Single-coil Sized Humbucker Pickups

Swap a single-coil for a humbucker without routing! These dual-rail humbuckers have all the benefits of a humbucker—increased output, low noise—all in a standard single-coil sized pickup.

Add some power to your Strat
Single-coils sound amazing, but once you increase the volume and gain, the noise and low output can totally ruin your tone. But who wants to cut up their favorite guitar? That’s where these Dual-rail pickups really shine.

Custom-wound and calibrated for the neck, middle, and bridge positions, each pickup has the output of a full-sized humbucker. With the single-coil size you get the perfect balance of power and clarity. The Alnico 5 magnet gives your tone well-defined highs, great mid-range punch, and clear, smooth bass.

While they are perfect to drop in as a set, you can also pair them with single-coils for a huge range of tones from your guitar. Still want a single-coil sound? You can split the coils as well.

Specifications

• High output humbucker pickup in a single-coil size package
• Rails accommodate any string spacing up to 2.64″ (67.25mm)
• Plain enamel 44 AWG coil wire
• Potted to suppress noise
• Alnico 5 magnets
• Four-conductor insulated lead wire

Output

• Neck: 9K ohm range
• Middle: 11K ohm range
• Bridge: 13K ohm range

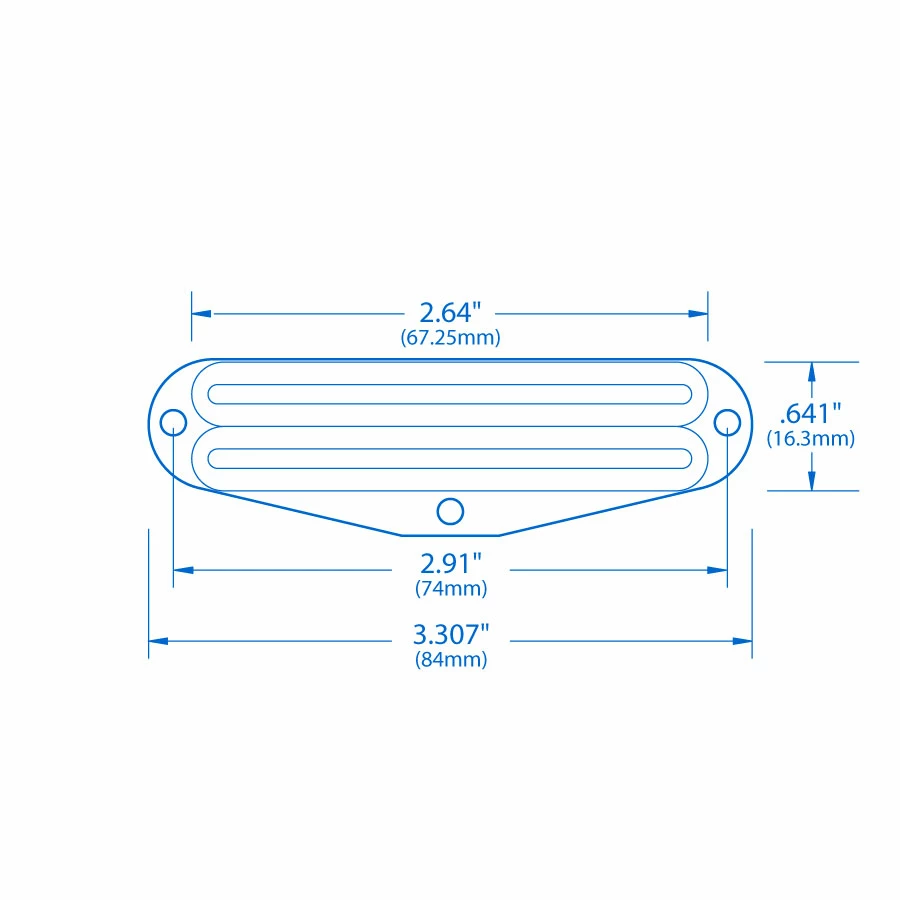

Dimensions

• Length including mounting tabs: 3.307″ (84mm)
• Length not including mounting tabs: 2.64″ (67.25mm)
• Mounting screw spacing: 2.91″ (74mm)
• Width: 0.641″ (16.3mm)

Height adjustment screws, springs, and wiring diagrams included.

Stratocaster®, Strat®, and Squier® are registered trademarks of Fender Musical Instruments Corporation.
