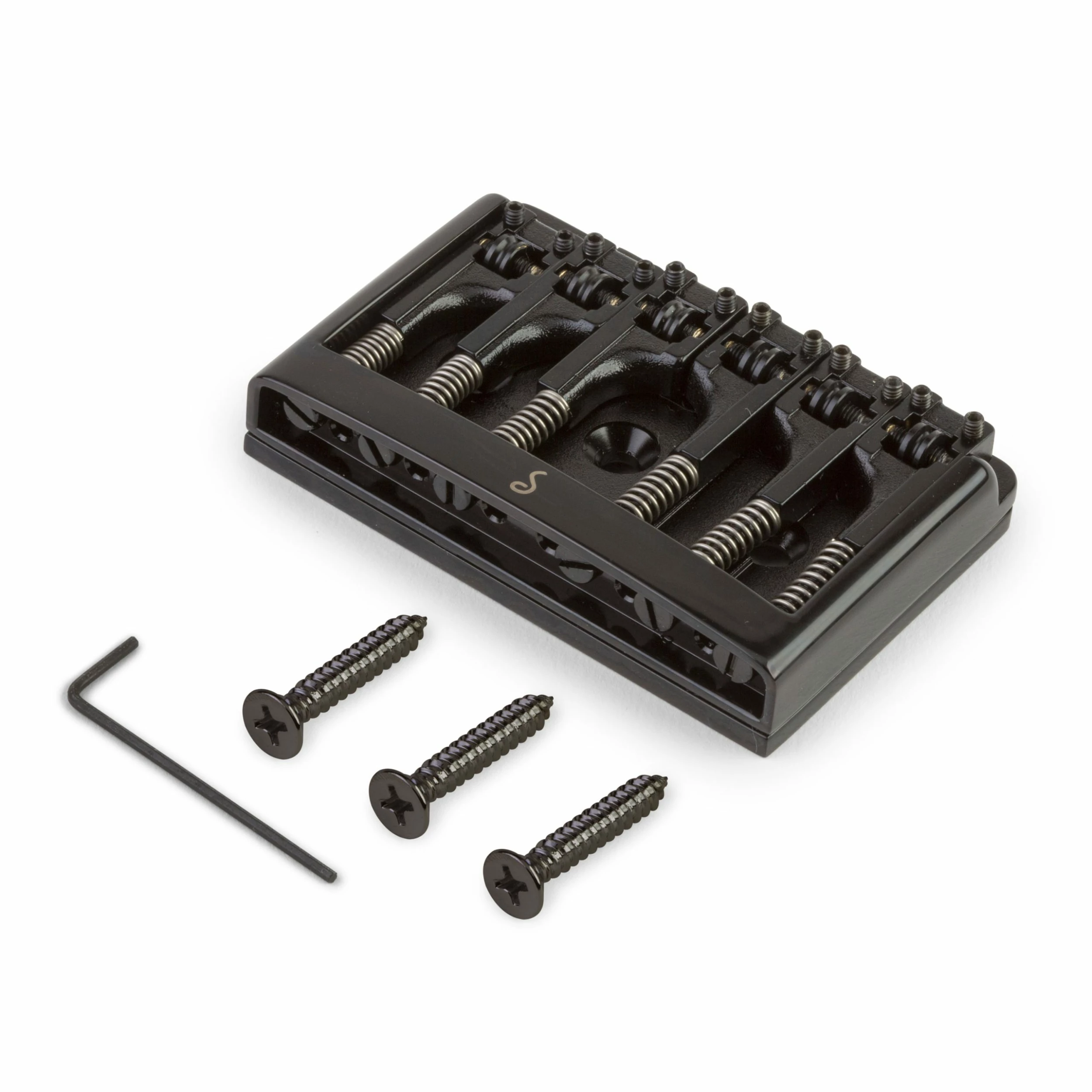

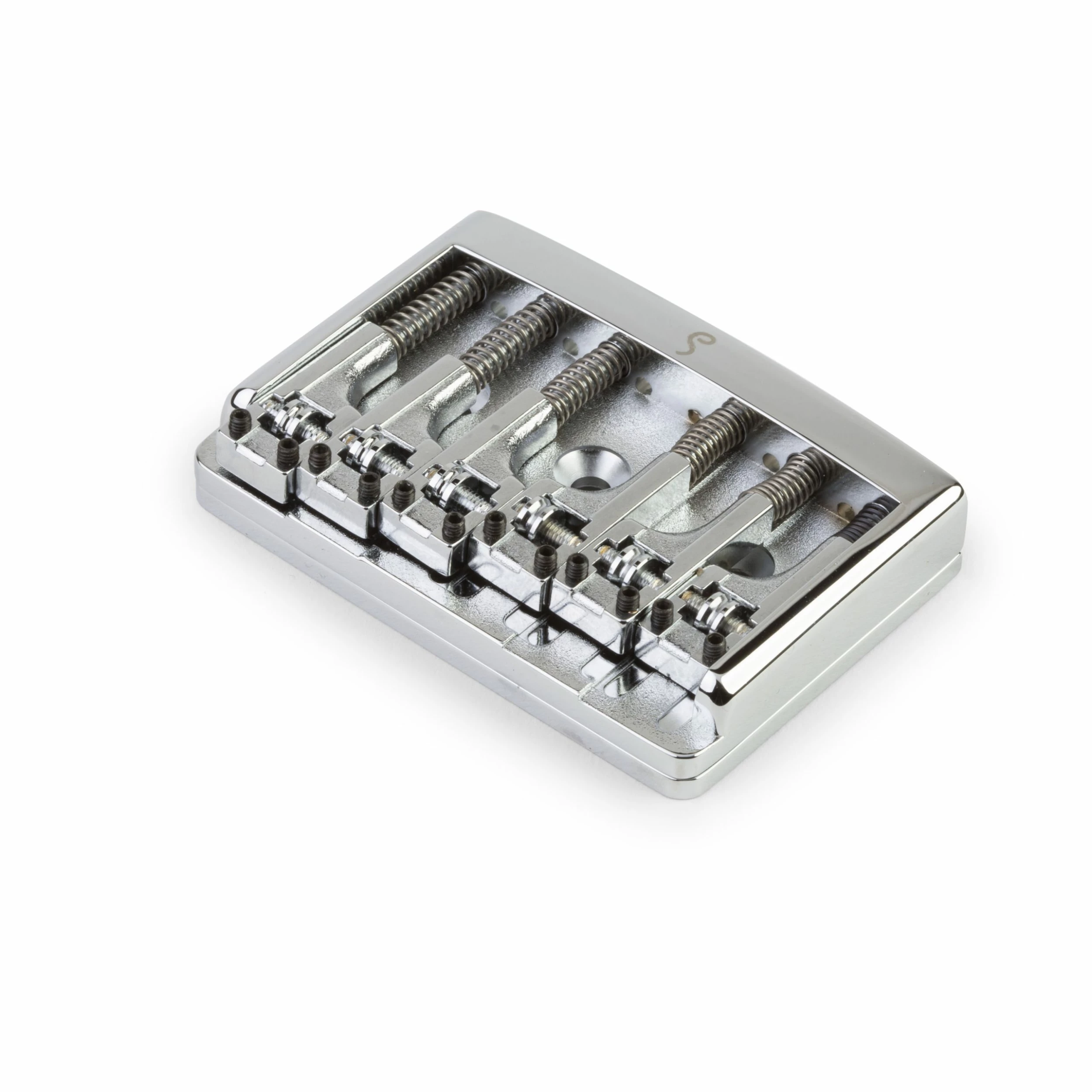

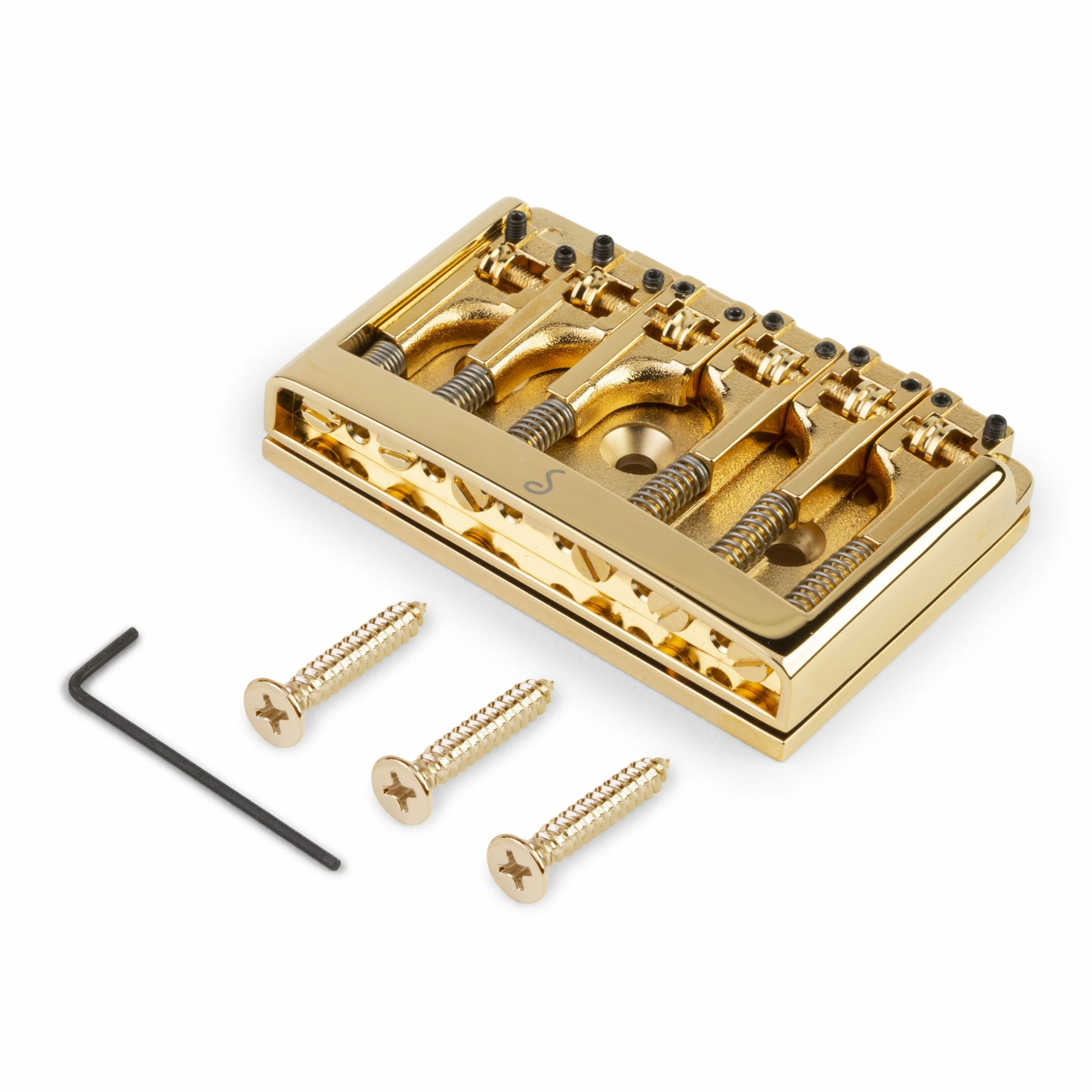

Schaller Non-Tremolo Roller Bridge
A highly adjustable non-trem Strat inspired bridge that doesn’t require through body stringing or string grommets.
Low-friction roller saddles adjust for intonation and height, and for string spacings from 2″ to 2-3/16″ (50.80mm to 55.56mm). The strings mount at the rear of the bridge. Screws included.

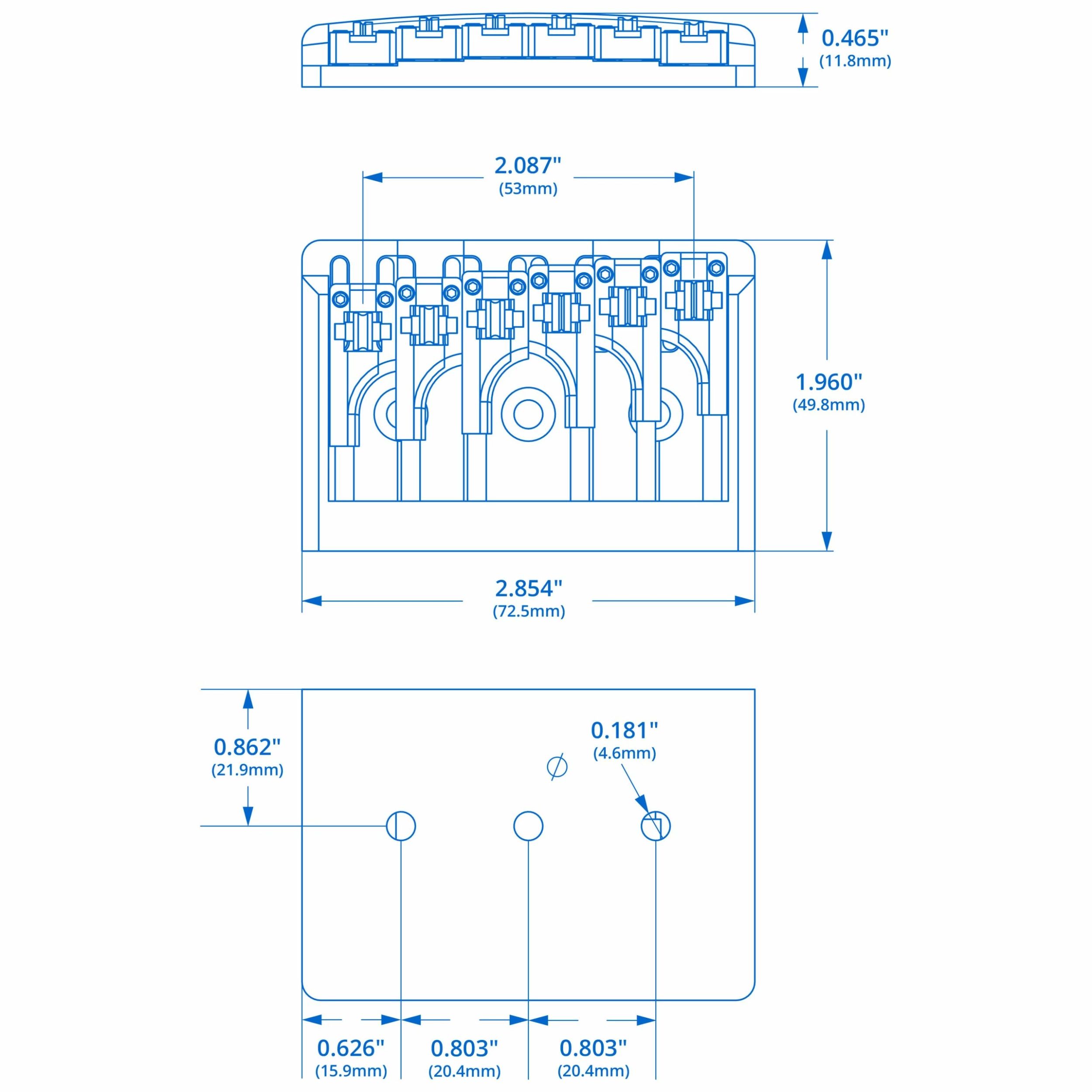

The saddles and the 2-13/16″ x 1-15/16″ (71.44mm x 49.21mm) baseplate are brass. A removable 1/8″ (3.00mm) spacer is included for raising the baseplate height if needed. Use a .050″ allen wrench to adjust the saddle heights from 3/8″ to 17/32″ (9.53mm to 13.49mm) from the guitar body (E string positions).
Find bridge placement for any scale with our free online tool fret position calculator.
-
- Item #
- Weight
-
- 0577
- 0.4340 lbs. (0.20 kg)
-
- 0577-B
- 0.4340 lbs. (0.20 kg)
-
- 0577-G
- 0.4340 lbs. (0.20 kg)
