Original ABR-1 Tune-o-matic Bridge
The original, not a look-alike. This is the genuine bridge, from the manufacturer who makes the originals.
Manufactured since the 1950s, this Tune-o-matic bridge is 100% true to the original.
The brass saddles are supplied without notches, for custom string spacing in your shop. The adjustable intonation screws are held by a retainer wire. Knurled height adjustment thumbwheels and threaded mounting posts are included.

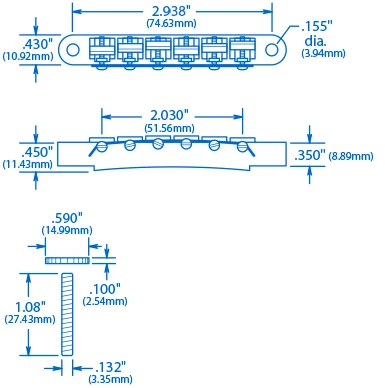

- String spread
2-1/32″
(51.56mm) - Saddle radius
12″
(304.80mm) - Post spacing
2-29/32″
(73.66mm) - Post threads
6-32 x 1-1/16″
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Find bridge placement for any scale with our free online tool fret position calculator.
Tip: Slotting Tune-o-matic style saddles
Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger. After filing to the desired depth, we suggest polishing the slot with Mitchell’s Abrasive Cord to remove file marks and burrs.
-
- Item #
- Weight
-
- 4616-C
- 0.144 lbs. (0.07 kg)
-
- 4616-G
- 0.144 lbs. (0.07 kg)
-
- 4616-N
- 0.144 lbs. (0.07 kg)
