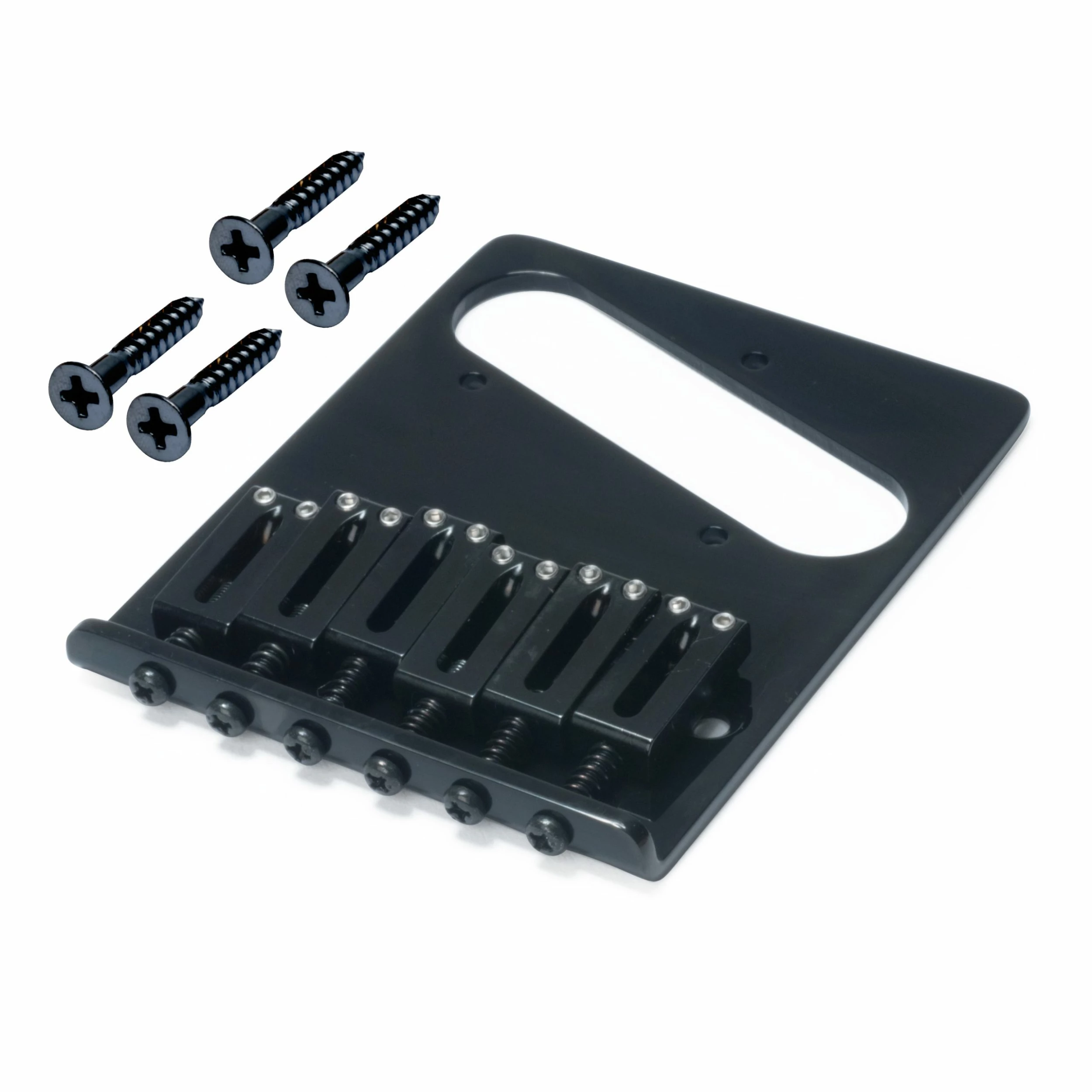

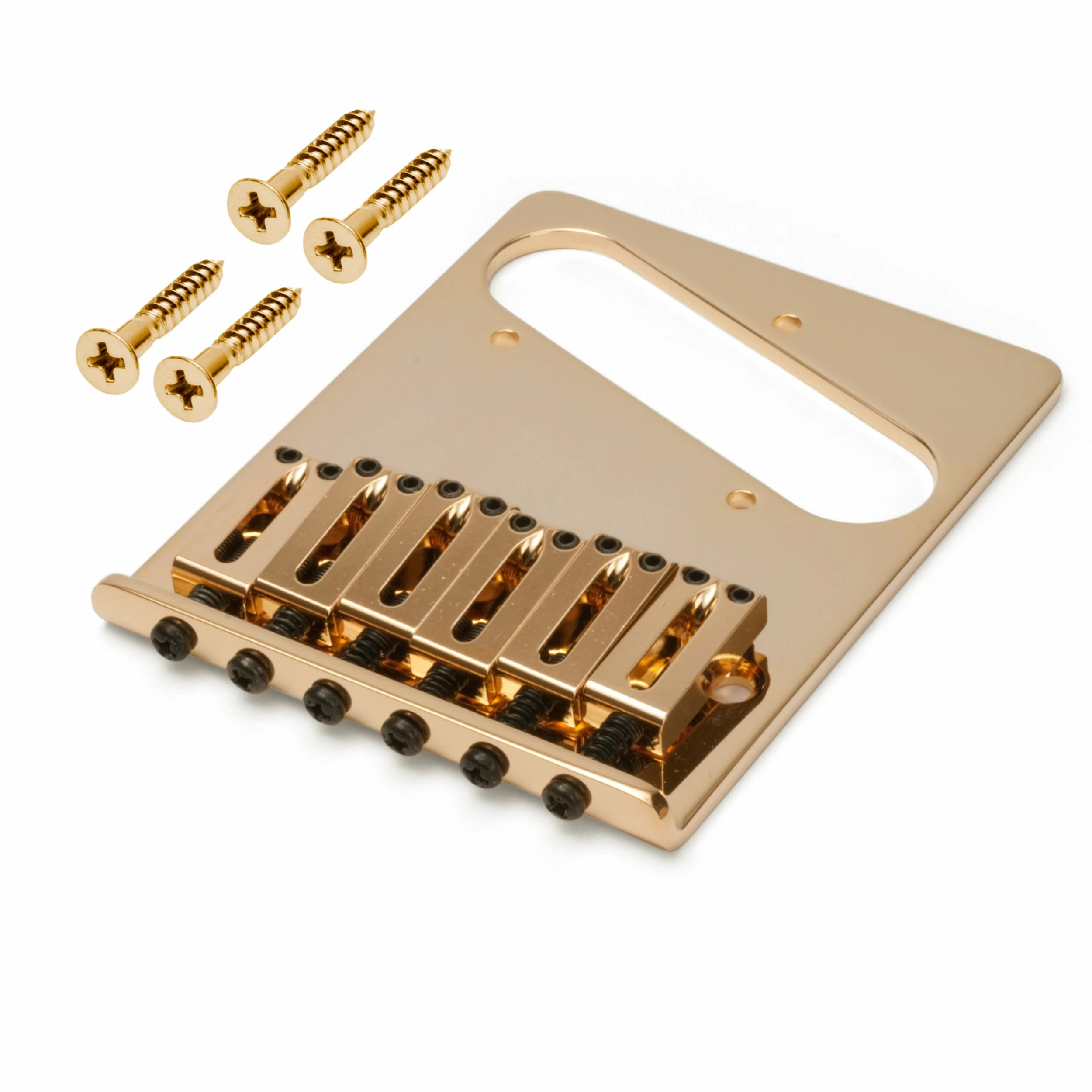

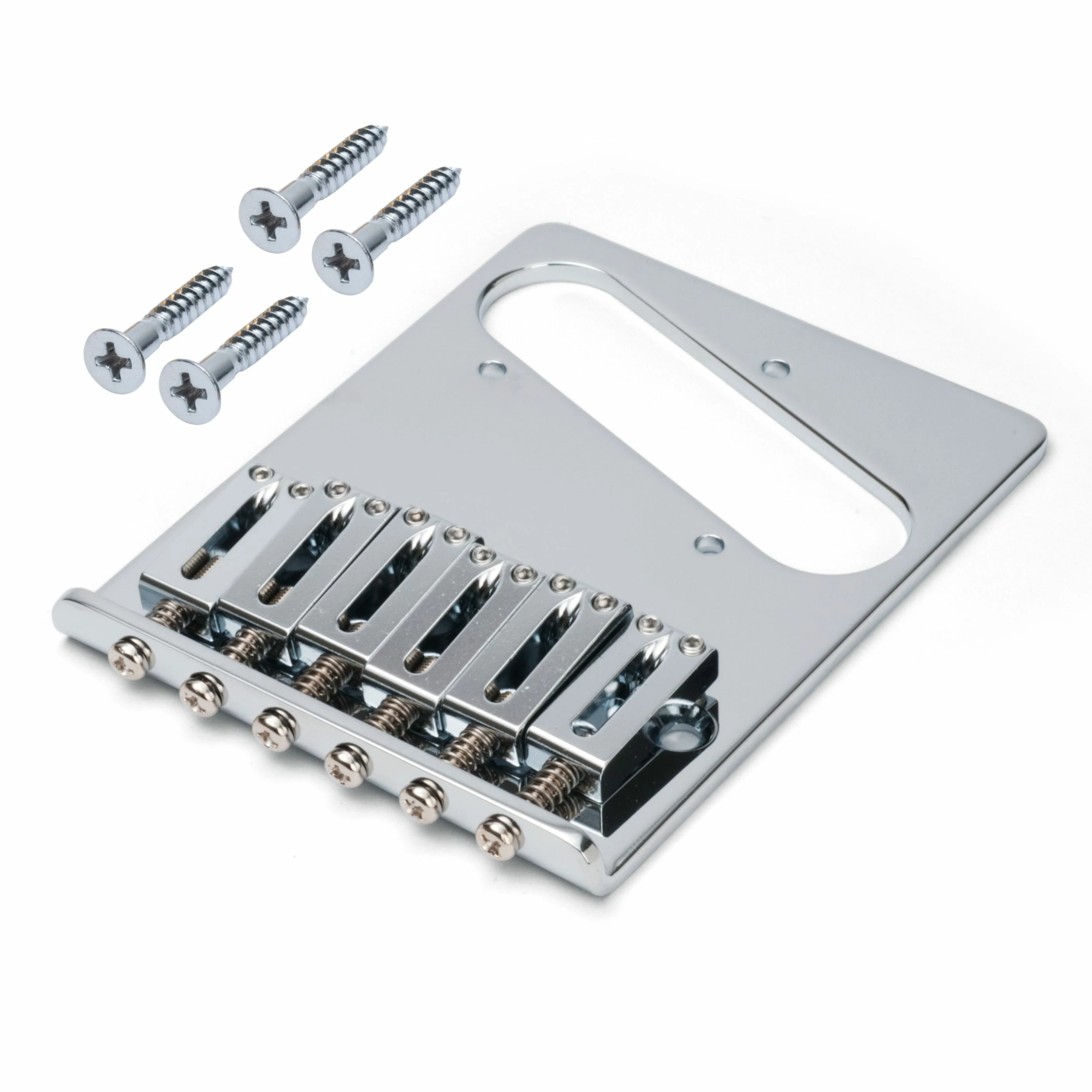

Gotoh Modern Bridge for Tele

A beefier version of the traditional Tele® bridge, featuring six completely adjustable saddles for string height, radius, and intonation.

For use with a Tele bridge pickup and through-body string attachment. This is a heavier bridge with a solid brass baseplate and allen-adjustable brass saddles. Mounting screws included.

String spread 2-1/8″ (53.97mm)

Saddle dimensions
Width 13/32″ (10.32mm)
Length 15/16″ (23.81mm)
Height 7/32″ (5.56mm)
Use a 1.5mm allen wrench for saddle height adjustment.

Baseplate dimensions 4″ x 3-1/8″ (101.60mm x 79.38mm)
Four mounting screw holes have 2.550″ (64.77mm) center-to-center spread.

Positioning the bridge
Find bridge placement for any scale with our free online tool fret position calculator.

Telecaster®, Tele®, and Esquire® are registered trademarks of Fender Musical Instruments Corporation.
