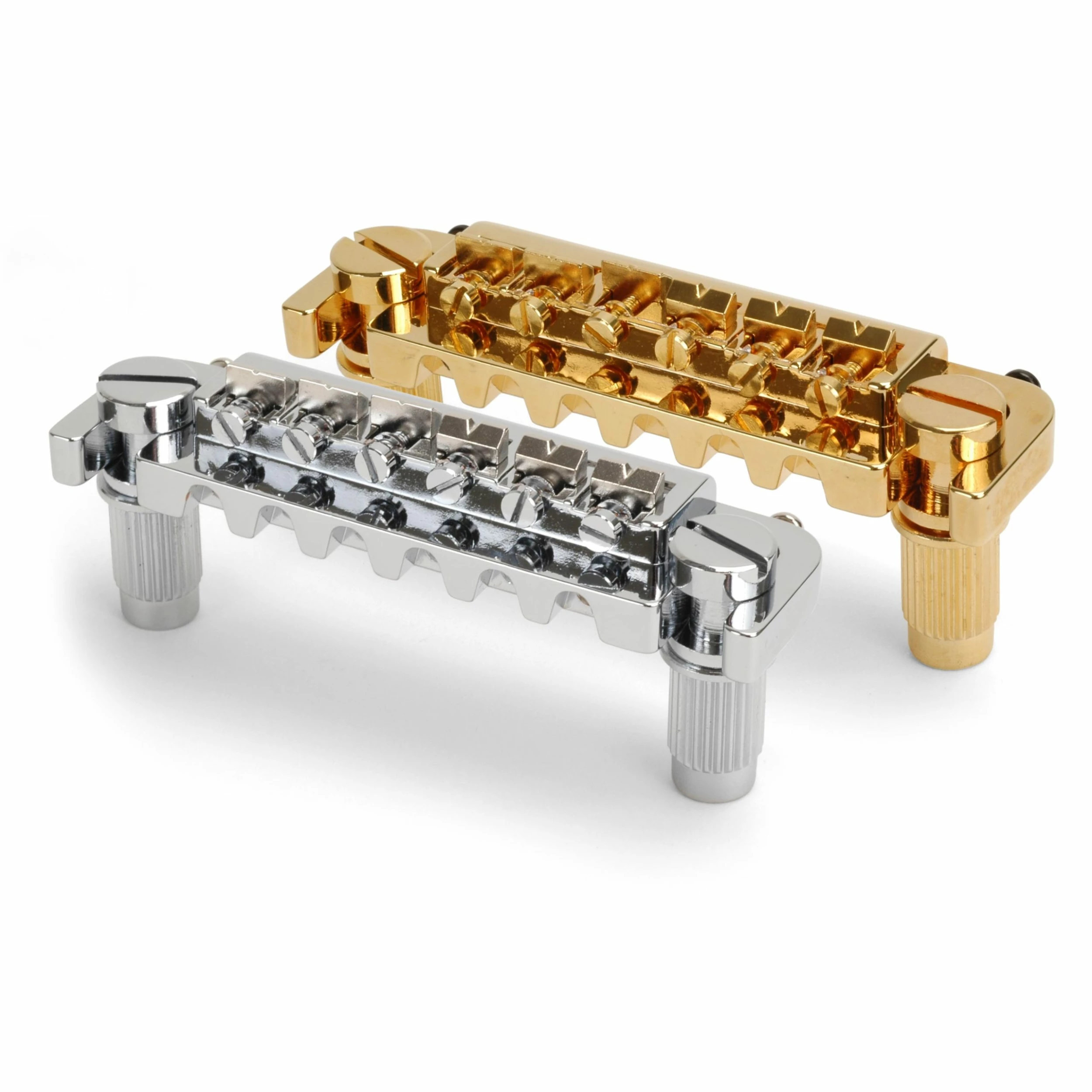

Adjustable Wraparound Bridge
A modern reproduction of the first combo bridge/tailpiece to feature individually adjustable saddles.
The wraparound design brought accurate intonation to Les Paul Junior®, SG Junior® and similar solidbody guitars, and has been popular since the 1970s.

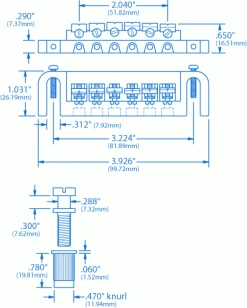

| String spread 2-3/64″ (51.82mm) |
|
Saddle radius 12″ (304.80mm) |
|
Stud spacing 3-1/4″ (82.55mm) |
|
Stud threads M8 x 1.25mm |

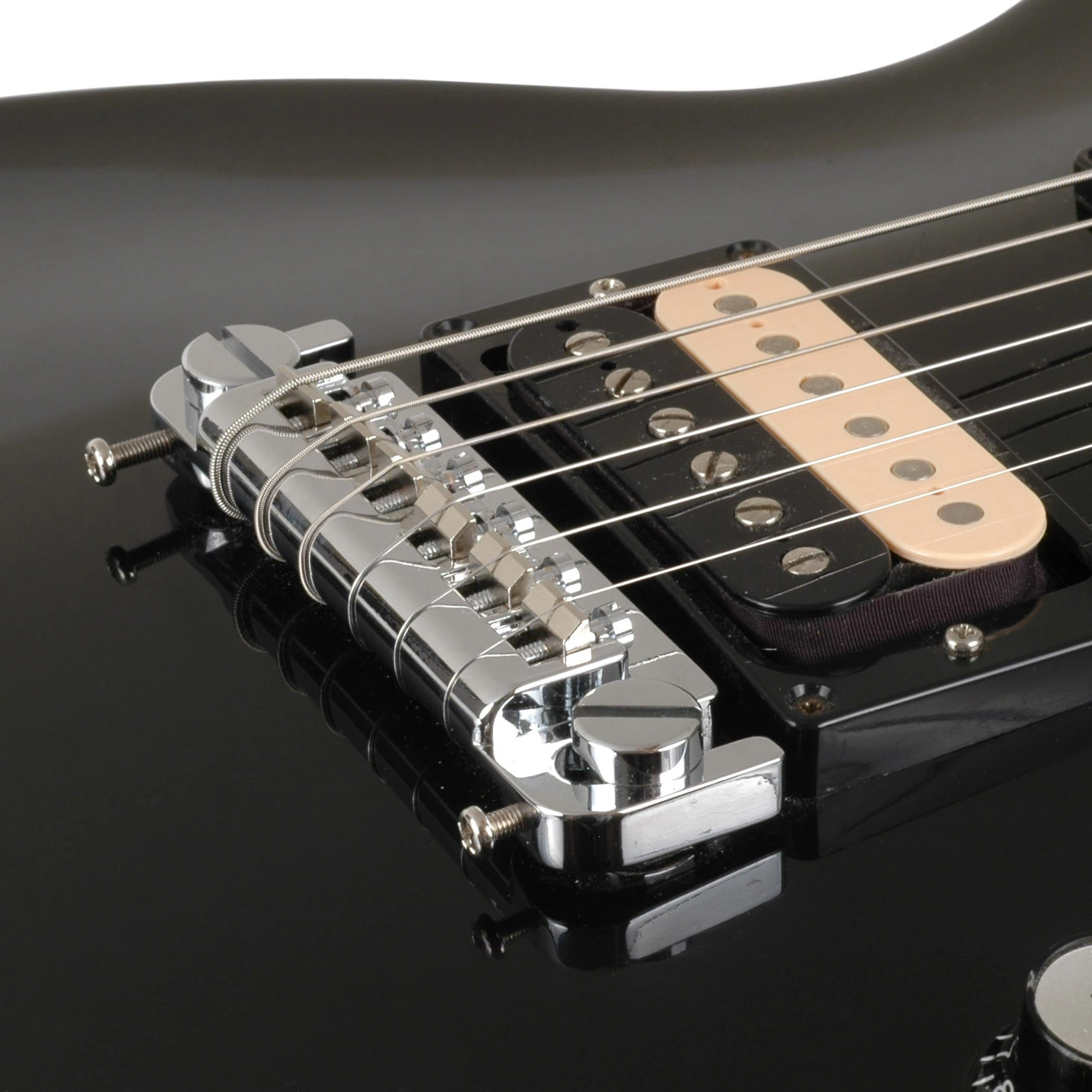

Two alignment screws adjust the overall intonation. The height-adjustable mounting studs include knurled bushings. The strings load from the front of the die-cast base, wrap over the back of the bridge, and over the notched saddles. Drill 7/16″ (11mm) holes for the bushings.
String spread is the distance between the centers of the outer strings on a bridge or tailpiece.
Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.
Stud/post spacing is the distance between the centers of the mounting posts of a bridge or ‘stop’ tailpiece.
Find bridge placement for any scale with our free online tool fret position calculator.
Tip: Slotting Tune-o-matic style saddles
Nut slotting files work great for metal saddles. Choose your file size as you would when slotting a nut: use the same gauge as the string, or a few thousandths larger. After filing to the desired depth, we suggest polishing the slot with Mitchell’s Abrasive Cord to remove file marks and burrs.
-
- Item #
- Weight
-
- 0401
- 0.3568 lbs. (0.16 kg)
-
- 0401-G
- 0.3620 lbs. (0.16 kg)
